GM 12 Bolt Truck 8.875 Inch Axle - Differential, Ring and Pinion, Gear & Axle Parts Catalog

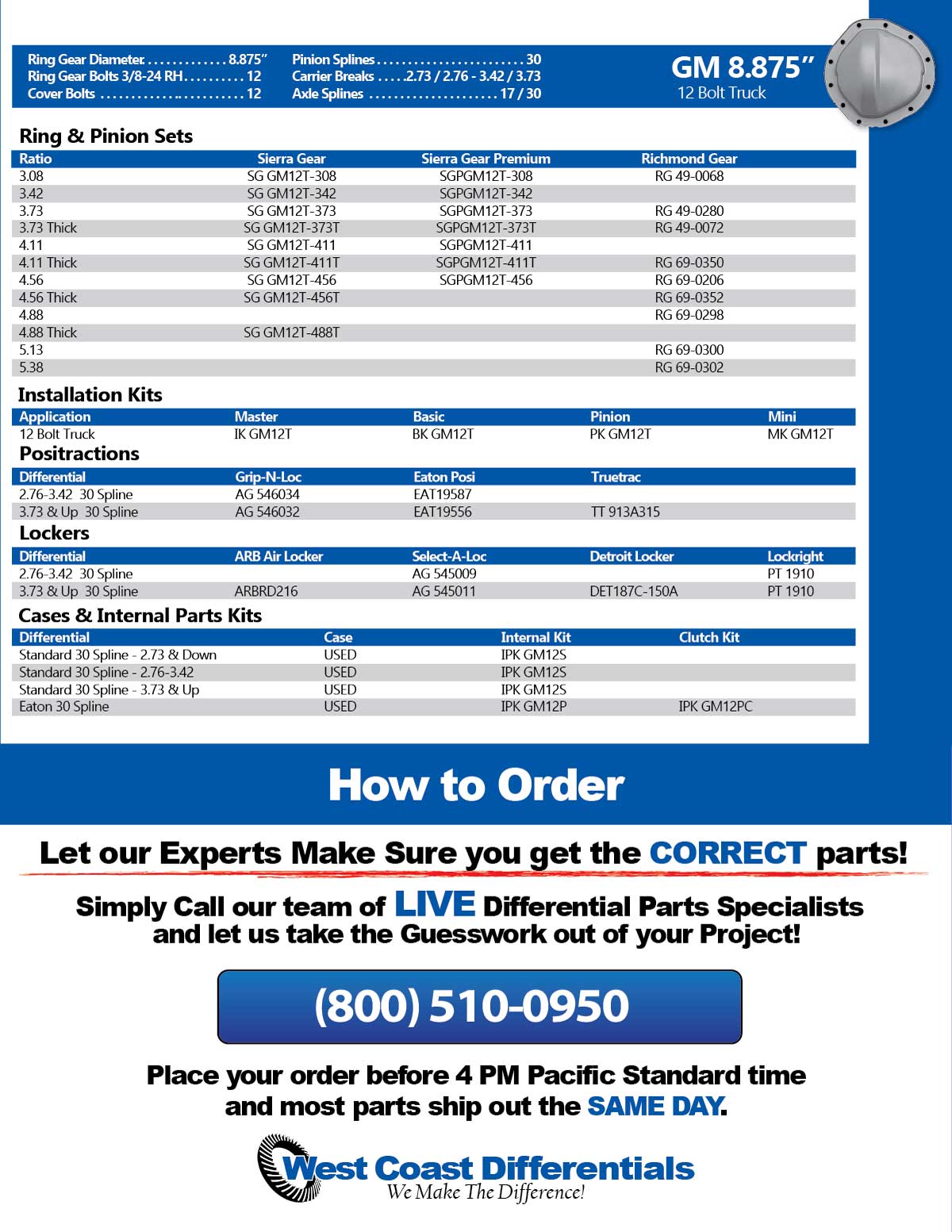

Click Page to Enlarge

GM 12-Bolt Truck Differential – Common Applications

1970-1981  |  Chevrolet Blazer
1969-1987  |  Chevrolet K5 Blazer
1963-1987  |  Chevrolet C10
1967-1981  |  Chevrolet G10
1963-1987  |  Chevy K10/ K1500
1963-1987  |  Chevy Suburban

1963-1987   |  GMC C15/ C1500
1963-1987   |  GMC G15/ G1500
1966-1981   |  GMC G25/ G2500
1963-1987   |  GMC K15/ K1500
1963-1987   |  GMC Suburban

GM 12-Bolt Truck Rear Axle – Exploded View Diagram

GM 12 Bolt Rear Axle Exploded View Diagram
